Synchronized fine-pitch positioning tables

Synchronization of 2 fine-pitch positioning tables for height adjustment of a long workpiece

For this application, a fine pitch of 1 mm was required for a table with a Ø16 drive screw and Ø20 guide columns. The adjustment stroke is 30 mm.

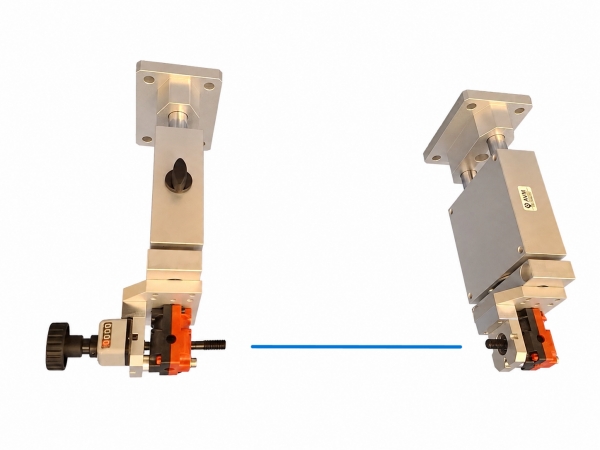

Two right-angle gearboxes and M10 threaded outputs allow the customer to connect the two tables with a semi-rigid shaft.

The system is equipped with a side-mounted control knob for easy access. The customer also requested a position indicator and a position lock.

This custom solution is based on our standard manual table range, allowing us to remain competitive and responsive.

Please feel free to contact us for any specific projects involving positioning tables or linear screw tables.
